Our Products

Steam Generator, Equipment Manufacturers

MODEL: T100

  • 2.2KW – 6.6KW
  • 100KPa – 500KPa
  • 6KG/H – 12KG/H



These single- or three-phase mini steam generators are suited for micro size steam systems operating at medium pressures. The units are automated and user-friendly and can be fed directly from the water mains or fitted with a feed pump for boosting or operating with an optional feed tank. Small, compact and reliable, the robust T100 is built to industrial boiler specifications for a lifetime of service and can be manufactured in stainless steel. The unit is supplied as a package and is complete with all valves, a safety valve and electrical isolator. It is enclosed in a quality finished galvanised or stainless steel cabinet and a boiler feed tank from 3CR12 (standard) or 316 stainless steel is optional as well as a blow-down-vessel (if required).


Steam Generator, Equipment Manufacturers

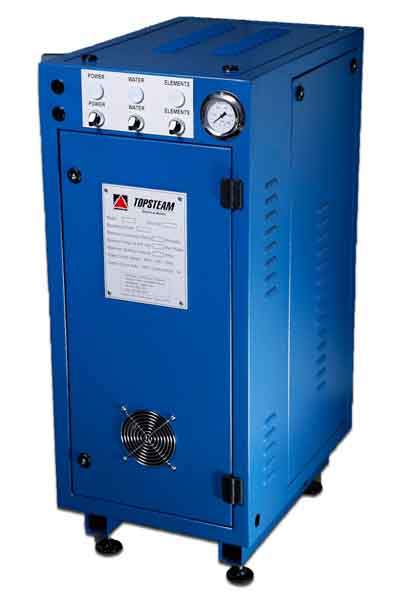

MODEL: T150

  • 12KW – 24KW
  • 100KPa – 500KPa
  • 16KG/H – 33KG/H



These single- or three-phase steam-generators are suited for small size steam systems operating at medium pressures. The units are automated and user-friendly and can be fed directly from the water mains or fitted with a feed pump for boosting or operating with an optional feed tank. Small, compact and reliable, the robust T150 is built to industrial boiler specifications for a lifetime of service and can be manufactured in stainless steel. The unit is supplied as a package and is complete with all valves, a safety valve and electrical isolator. It is enclosed in a quality finished galvanized or stainless steel cabinet and a boiler feed tank from 3CR12 (standard) or 316 stainless steel is optional as well as a blow-down-vessel (if required).


Steam Generator, Equipment Manufacturers

MODEL: T200

  • 24KW – 48KW
  • 100KPa – 250KPa
  • 41KG/H – 65 KG/H



These three-phase steam generators are suited for small steam systems operating at lower pressures. The units are automated and user-friendly and can be fed directly from the water mains or fitted with a feed pump for boosting or operating with an optional feed tank. Small, compact and reliable, the robust T200 is built to industrial boiler specifications for a lifetime of service and can be manufactured in stainless steel. The unit is supplied as a package and is complete with all valves, a safety valve and electrical isolator. It is enclosed in a quality finished galvanized or stainless steel cabinet and a boiler feed tank from 3CR12 (standard) or 316 stainless steel is optional as well as a blow-down-vessel (if required).


Steam Generator, Equipment Manufacturers

T250 Steam Generators

  • 30KW – 216KW
  • 50KPa – 150KPa
  • 23KG/H – 90KG/H



These three-phase steam generators are suited for small to medium size steam systems operating at low pressure. The units are automated and user-friendly and are typically applied for open-ended steam systems, i.e. for humidification, low-pressure steam environments, sterilisation of growing mediums etc. It is fed directly from the water mains, however a booster pump can be fitted. The robust and reliable T250 is built to the highest standards and can be supplied as either a stationary or mobile unit and also in stainless steel. The unit is supplied as a package and is complete with all valves, a safety valve and electrical isolator. It is enclosed in a quality finished galvanised or stainless steel cabinet and a boiler feed tank from 3CR12 (standard) or 316 stainless steel is optional as well as a blow-down-vessel (if required).


Steam Generator, Equipment Manufacturers

T300 Steam Generators

  • 30KW – 126KW
  • 100KPa – 700KPa
  • 40KG/H – 168KG/H



These three-phase steam generators are very versatile and suited for almost any small to medium size steam system operating at medium to high pressures. The units are automated and user-friendly and can be fed directly from the water mains or fitted with a feed pump for boosting or operating with an optional feed tank. The unique design and superior quality makes this a world-class boiler that is extremely robust and reliable. The T300 is suitable for almost any application and environment with a structural lifespan that would comfortably exceed 20 years if cared for. Higher working pressures (>700KPa) are available on request. The unit is supplied as a package and is complete with all valves, a safety valve and electrical isolator. It is enclosed in a quality finished galvanised or stainless steel cabinet and a boiler feed tank from 3CR12 (standard) or 316 stainless steel is optional as well as a blow-down-vessel (if required).


Steam Generator, Equipment Manufacturers

T400 Steam Boilers

  • 144KW – 294KW
  • 100KPa – 700KPa
  • 193KG/H – 393KG/H



These three-phase steam generators are very versatile and suited for almost any small to medium size steam system operating at medium to high pressures. The units are automated and user-friendly and can be fed directly from the water mains or fitted with a feed pump for boosting or operating with an optional feed tank. The unique design and superior quality makes this a world-class boiler that is extremely robust and reliable. The T300 is suitable for almost any application and environment with a structural lifespan that would comfortably exceed 20 years if cared for. Higher working pressures (>700KPa) are available on request. The unit is supplied as a package and is complete with all valves, a safety valve and electrical isolator. It is enclosed in a quality finished galvanised or stainless steel cabinet and a boiler feed tank from 3CR12 (standard) or 316 stainless steel is optional as well as a blow-down-vessel (if required).


Steam Generator, Equipment Manufacturers

TH Hot Water Boilers

  • 36KW – 216KW
  • 700KPa



These three-phase units can be described as automated in-line process heaters or hydronic boilers. They are designed for raising and regulating the temperature of most single-pass and/or circulated fluid systems. The compact, high-quality design can be supplied in either carbon or stainless steel. The unit is packaged and includes all valves, relief valve, vacuum breaker, etc as standard.


Steam Generator, Equipment Manufacturers

BS (Mobi-Steamer) Steam Generator

  • 15KW – 60KW
  • 50KPa – 150KPa
  • 23KG/H – 90KG/H



These single – or three-phase mobile steam generators are specifically designed for wine cellars and bottling plants. The low-pressure Mobi-Steamer is a very robust and reliable unit and is supplied with a trailing cable, flexible steam hose, a barrel steam wand, and standard steam nozzle for tanks and other equipment. The superior quality and design of the Mobi-Steamer is recognised by experts and is used in some of the most prestigious wine cellars in South Africa. It is the only local unit producing real dry-saturated steam, which makes it more effective, more efficient and more economical to operate.


Steam Generator, Equipment Manufacturers

TM Milk Froth Unit

  • 1500W
  • 500KPa



These automated commercial type single-phase steam generators are built for the catering industry, restaurants, hotels and coffee shops. The well-proven and reliable TM is a compact stainless steel unit with simple operating functions and offers superior quality at an affordable price. The user-friendly TM is simply connected to a standard 230V wall socket and to the water mains. Quality dry-saturated steam at up to 5Bar pressure will froth milk perfectly in an instant.
